CarveWright RAVEN CNC Router Sign Makers Bundle (Three-Axis 3D Desktop Carving System, VCarve Software Suite, Brushless Spindle, SIGN Makers Bit Set & Sanding Mop)

CarveWright RAVEN CNC Router Sign Makers Bundle (Three-Axis 3D Desktop Carving System, VCarve Software Suite, Brushless Spindle, SIGN Makers Bit Set & Sanding Mop)

Turn your workshop into a high-capacity custom signage shop with the CarveWright RAVEN CNC Router Sign Makers Bundle. Intelligently curated for commercial print shops, boutique woodworkers, and independent makers, this comprehensive premium configuration delivers high-precision v-carving, detailed engraving, and deep profiling within a space-saving desktop footprint.

While traditional open-bed CNC routers limit your workspace to a massive, room-hogging cutting table, the RAVEN uses a patented Feed-Through architecture. Like a benchtop wood planer, it passes raw wood boards, acrylic sheets, or composite panels directly through the unit, giving you the power to carve massive commercial signs while utilizing minimal workbench space.

Packed with advanced variable-ratio sign-making software, an elite carbide bit collection, and flexible finishing tools, the Sign Makers Bundle serves as a complete turnkey solution for producing professional lettering, sharp graphics, and detailed logos.

Expanded Signage Software Ecosystem

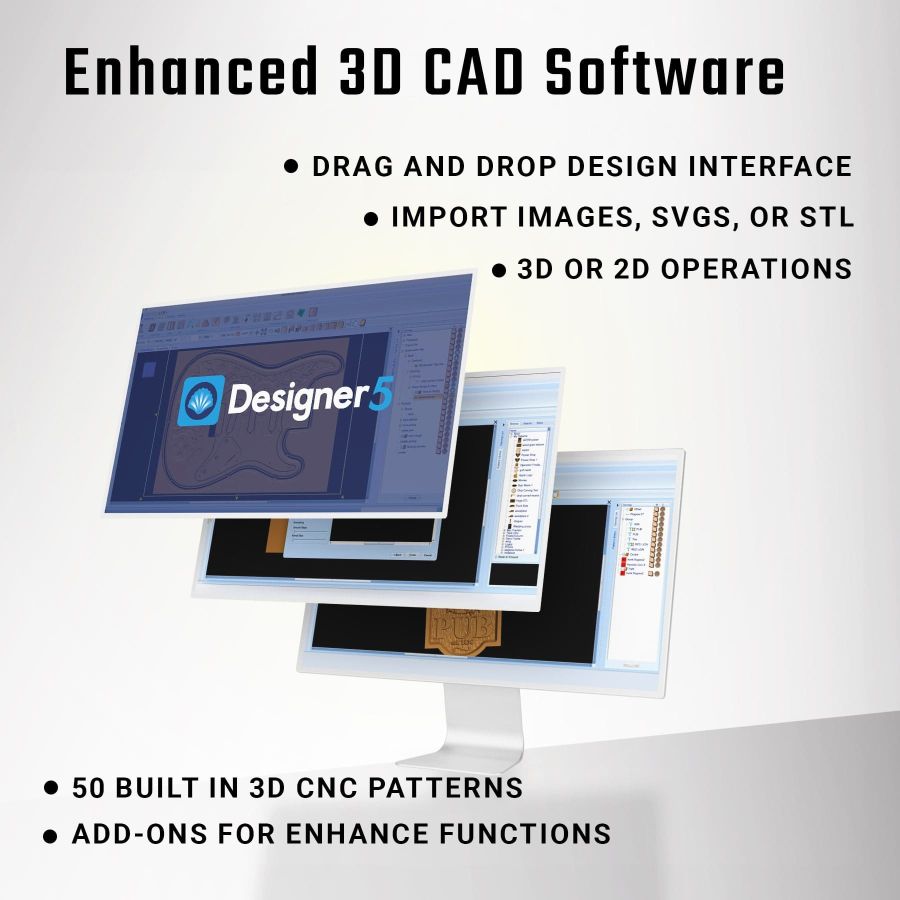

• VCarve Software Suite Integration: In addition to the standard Designer 5 CAD/CAM program (preloaded with 50 3D carving patterns), this specific bundle includes the powerful VCarve software extension. This critical addition unlocks smooth vector handling, fast V-bit profiling, and advanced texturing paths to generate high-end, multi-dimensional lettering and clean faux-hand-carved sign backgrounds effortlessly.

• Intuitive Off-Machine Formatting: All critical positioning, bit assignments, and feed paths are completely calculated and processed on your computer prior to cutting. This design file maps natively to a USB thumb drive, eliminating layout guesswork at the machine terminal and ensuring an efficient work flow.

Patented Feed-Through Feed & Slip-Free Encoding

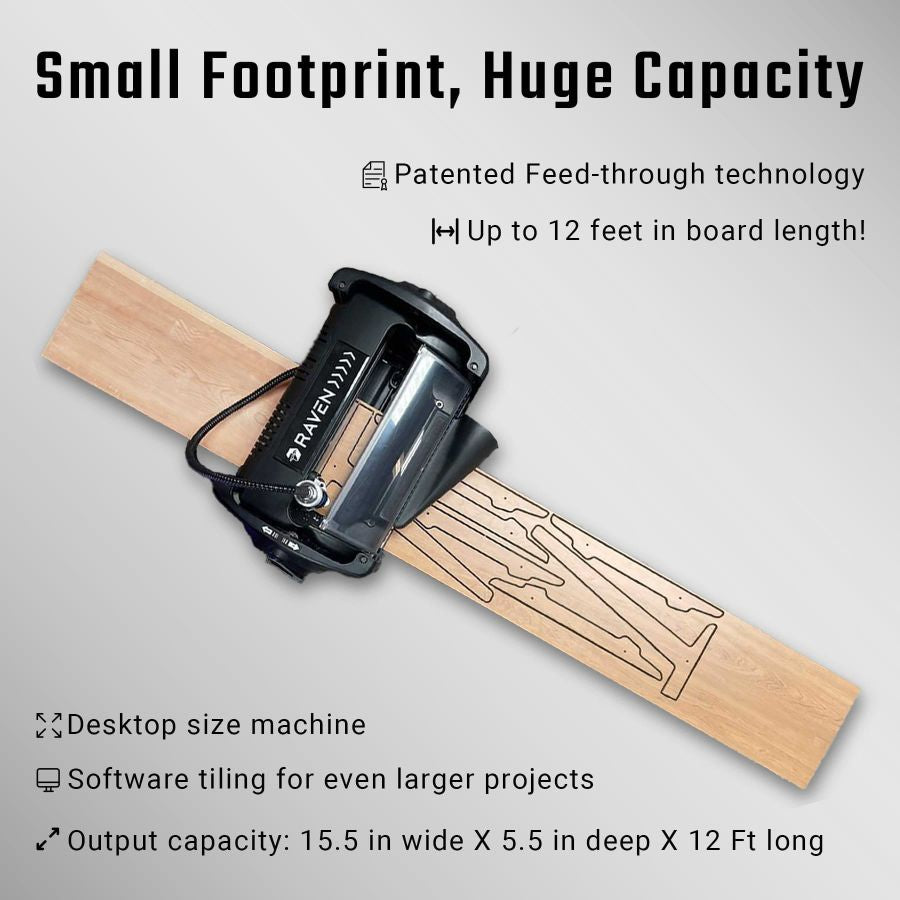

• Massive Build Volume in a Compact Footprint: Processes an array of softwoods, hardwoods, PVC, and dense acrylics using heavy-duty rubberized PVC feed-through belts. This feed geometry handles a sweeping maximum work volume sizing up to 15.5 inches wide, 5.5 inches thick, and up to a massive 12 feet long.

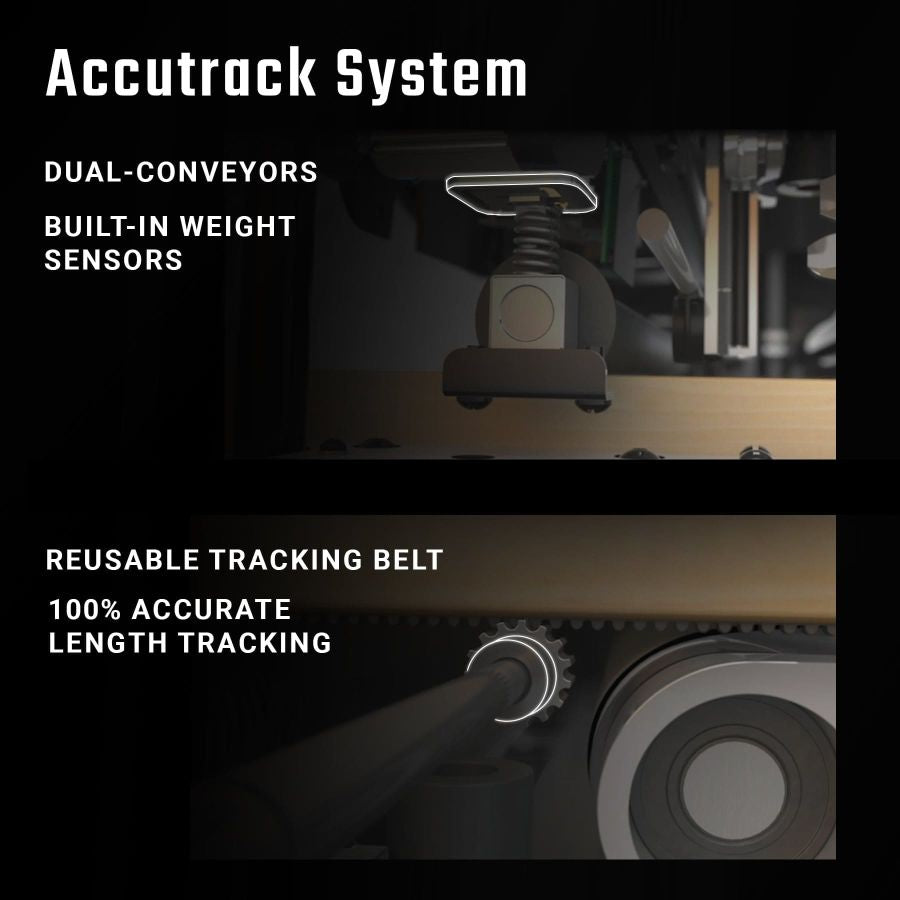

• AccuTrack High-Precision Track Encoding: Utilizes integrated weight sensors paired with double-conveyor tracking tape to ensure smooth, uniform material feeds. This tracking matrix completely eliminates board slippage over long travel runs, monitoring vector paths down to a tight maximum encoder resolution of 0.0003 inches.

Industrial Brushless Spindle & Servo Protection

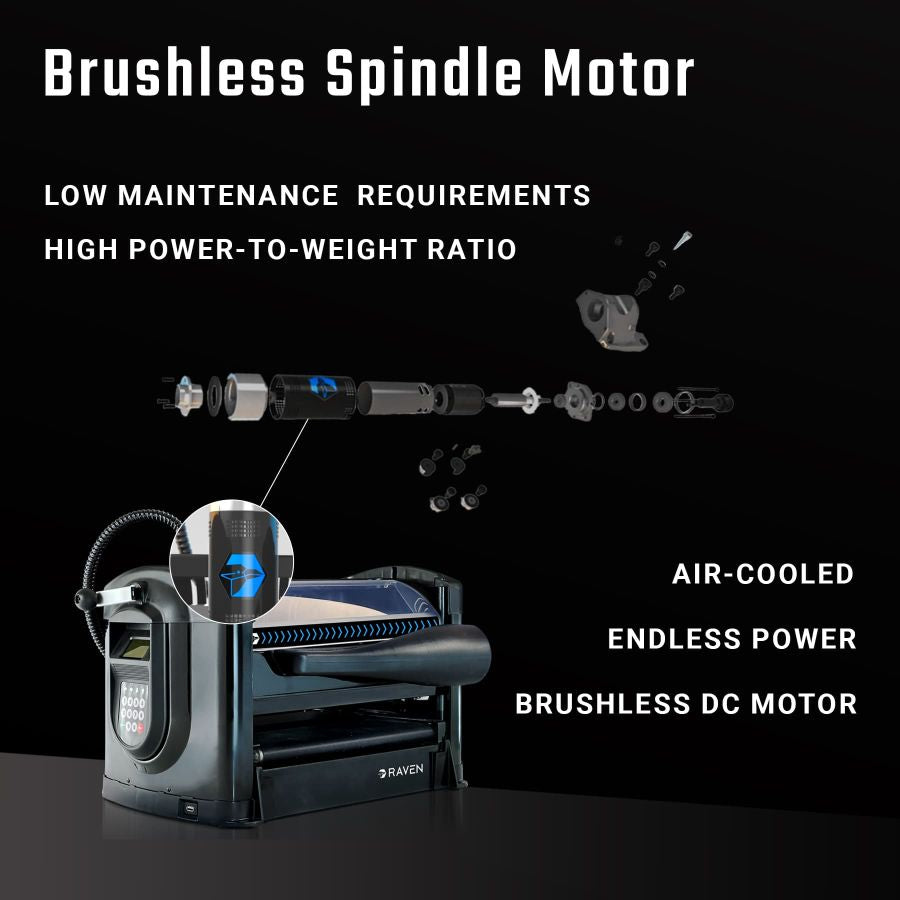

• 1.25 HP Continuous Brushless Torque: Driven by a premium, low-noise 675W continuous output brushless motor providing up to 1.25 peak horsepower along a variable speed spectrum of 3,000 to 22,000 RPM. Free of wear-prone carbon brushes, its dust-free air-cooled design delivers reliable cutting torque with near-zero routine maintenance.

• ServoSmart 2 Advanced Motion Intelligence: Monitored by a smart ServoSmart™ 2 controller keeping real-time tabs on five independent closed-loop feedback circuits. Driven by high-speed Mabuchi servo motors, the system pre-calculates axis backlash and automatically self-corrects for variations in material density. If a fast V-groove carving tool catches a tough wood knot, the machine pauses smoothly to protect your sign blank rather than gouging or crashing.

• CarveTight Spindle Chuck System: Built from a hardened single-piece steel core running on high-speed phenolic cage bearings with a single clamping paw. This design keeps rotational runout near zero, protecting fragile detail engraving bits while speeding up manual tool changes.

Curated Professional Sign Accessories

• Application-Specific SIGN Makers Bit Set: Outfitted with an array of specialized signage cutting and carving bits. This tailored package includes the exact V-groove, clearing, and profiling profiles needed to execute crisp chamfered outlines, uniform text clearing, and detailed 3D logos.

• Large 240-Grit Sanding Mop: Streamline your post-carve finishing work with an included large 240-grit flexible sanding mop. Perfect for mounting to a standard workbench drill or handheld rotary motor, its flexible fingers conform to complex letters and tight crevices to whisk away wood fuzz without flattening out crisp detail lines.

Technical Specifications Summary

Feature / Metric	Specification
Brand / Model Series	CarveWright — RAVEN CNC Series
Package Classification	Sign Makers Bundle System
CNC Axis Performance	Precision 3-Axis V-Carving, Cutting, Engraving, & 3D Profiling
Maximum Build Volume	15.5" (Width) x 5.5" (Thickness) x Up to 12 Feet (Length)
Motion Encoding Precision	0.0003-inch Max Encoder Resolution
Spindle Assembly Power	675W Continuous Output / Peak 1.25 HP Brushless
Spindle Speed Dynamics	3,000 to 22,000 RPM Variable Control
Carving / Jogging Speeds	Up to 6 Inches Per Second / 9.3 Inches Per Second
Universal Utility Power	Universal Auto-Sensing 90V–240V, 50/60 Hz Input
Chassis Core Materials	Cast Aluminum Head & Trucks with Painted Steel / ABS Shell
Net Machine Weight	70 lbs. Unloaded Base Machine Weight
Computer System Compatibility	Windows (10+) and Mac OS X (10.6+)

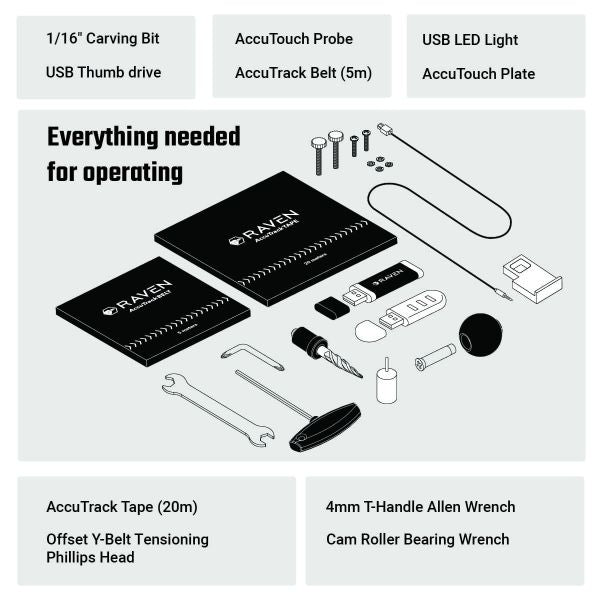

Package Inclusions (Sign Makers Bundle)

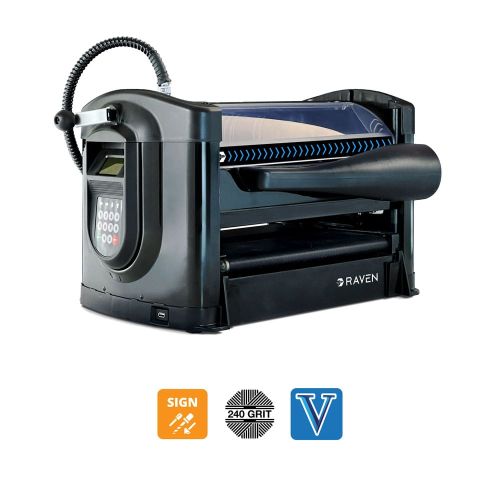

• RAVEN CNC Core Router Unit

• Designer 5 Software Core License & 50 3D Patterns

• VCarve Software Suite Extension

• Specialized SIGN Makers Bit Set

• Large 240 Grit Flexible Sanding Mop

• Raven Accessory Hardware Box & Heavy-Duty Dust Hood

• AccuTouch Setup Probe & Zeroing Plates

• Data Connectivity Kit: Dedicated USB Flash Thumb Drive
