CarveWright RAVEN CNC Router Prop Makers Bundle (Three-Axis 3D Desktop Carving System, Specialized Modeling & Slicing Software Suite, PRO Bit Set, Rotary Jig & Sanding Mop)

CarveWright RAVEN CNC Router Prop Makers Bundle (Three-Axis 3D Desktop Carving System, Specialized Modeling & Slicing Software Suite, PRO Bit Set, Rotary Jig & Sanding Mop)

Breathe life into your most imaginative concepts and scale up your fabrication workshop with the CarveWright RAVEN CNC Router Prop Makers Bundle. Specifically curated for prop makers, cosplayers, theater set creators, and special effects artisans, this premium comprehensive package delivers elite multi-dimensional sculpting, indexing, and machining power within a space-optimized desktop footprint.

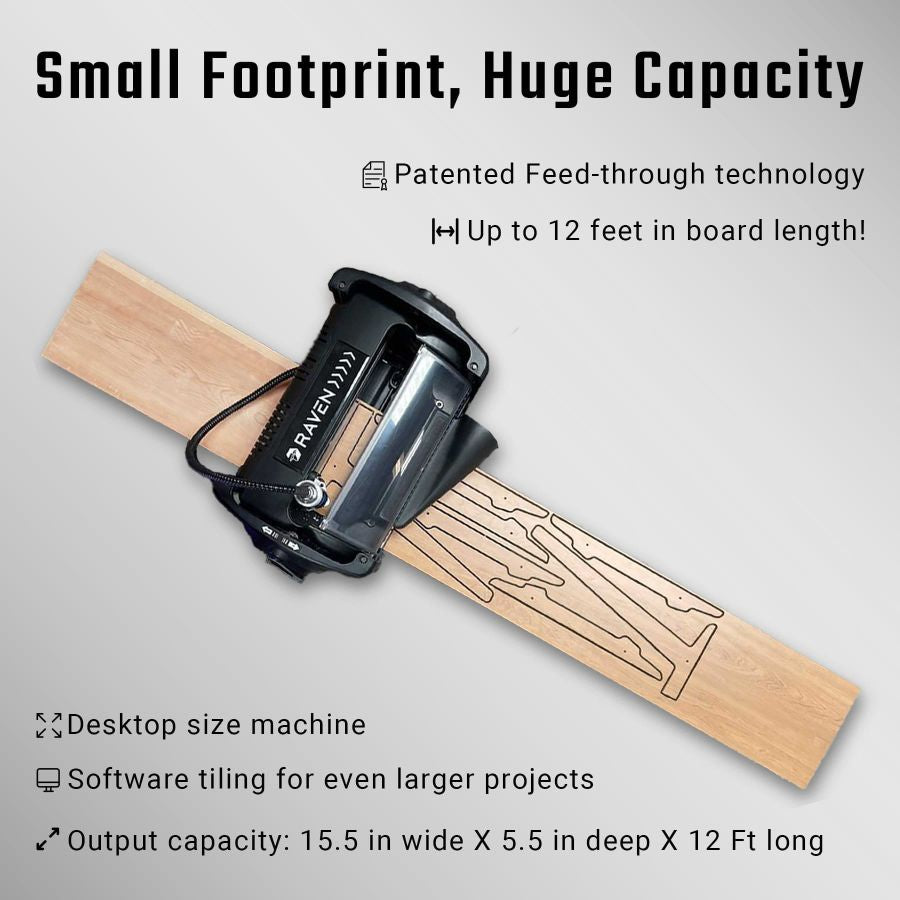

While traditional open-bed CNC routers restrict your capabilities to the size of a bulky, room-hogging cutting table, the RAVEN utilizes a patented, space-saving Feed-Through architecture. Functioning similarly to a benchtop wood planer, it passes materials directly through the unit using heavy-duty rubberized PVC conveyor belts. This compact geometry gives you the freedom to craft massive, oversized structural replicas, complex costume armor, and intricate models while using minimal workbench real estate.

Comprehensive Prop-Making Software & Add-On Modules

The Prop Makers Bundle expands far beyond basic vector engraving, loading your digital workstation with a powerful array of creative software packages:

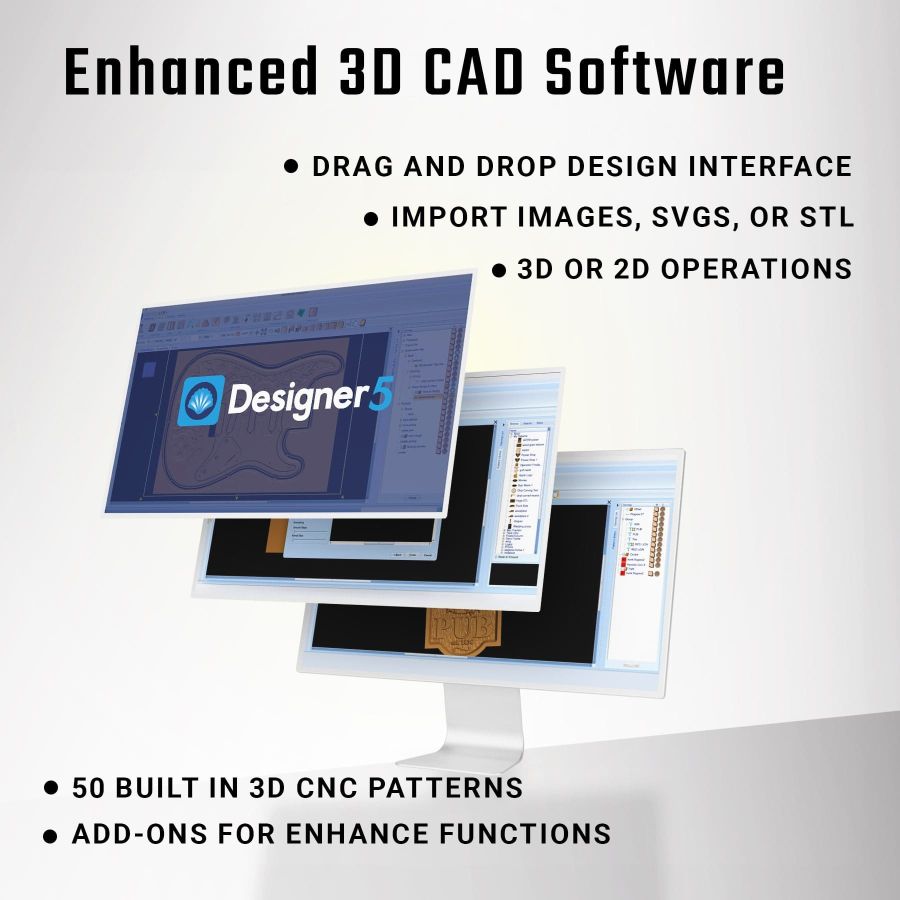

• Designer 5 CAD/CAM Software: Includes a full core software license pre-loaded with 50 3D carving patterns, providing an intuitive drag-and-drop system to lay out baseline profiles immediately.

• Advanced Modeling Suite: Unlocks the capability to design custom 3D geometries, bevel paths, sweeps, and shapes directly inside the software framework without requiring external CAD systems.

• Integrated Slicer Software Module: A game-changer for prop builders creating oversized objects. This tool automatically slices massive, full-scale 3D digital models (like large helmets, statue busts, or weapon replicas) into interlocking layer slices. You can carve each piece sequentially and seamlessly assemble them into a stunning 3D finished product.

• Sculptor 2 Mesh Modeler: Provides organic digital sculpting brushes to add fine textures, smooth transitions, and intricate details directly onto your 3D patterns.

Patented Feed-Through Design & Rigid Precision Tracking

• Expansive Workpiece Adaptability: Effortlessly processes a versatile spectrum of prop materials—including dense tooling foam, acrylic sheets, plastics, softwoods, hardwoods, and non-ferrous soft compounds. Handles a sweeping maximum work volume sizing up to 15.5 inches wide, 5.5 inches thick, and up to a massive 12 feet long.

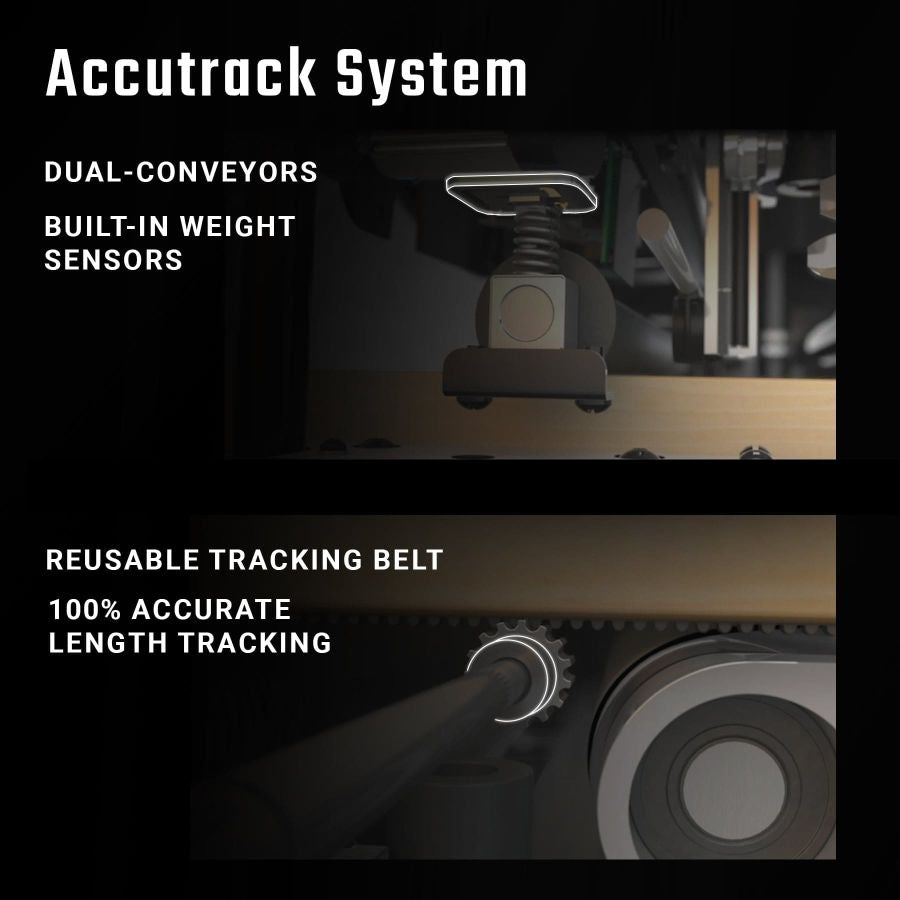

• AccuTrack High-Precision Slip Defense: Employs an advanced tracking system combining integrated weight sensors, dual-conveyors, and reusable tracking components. This setup eliminates board slippage over long travel sweeps, tracking vectors down to a tight maximum encoder resolution of 0.0003 inches.

High-Output Brushless Spindle & Servo Protection

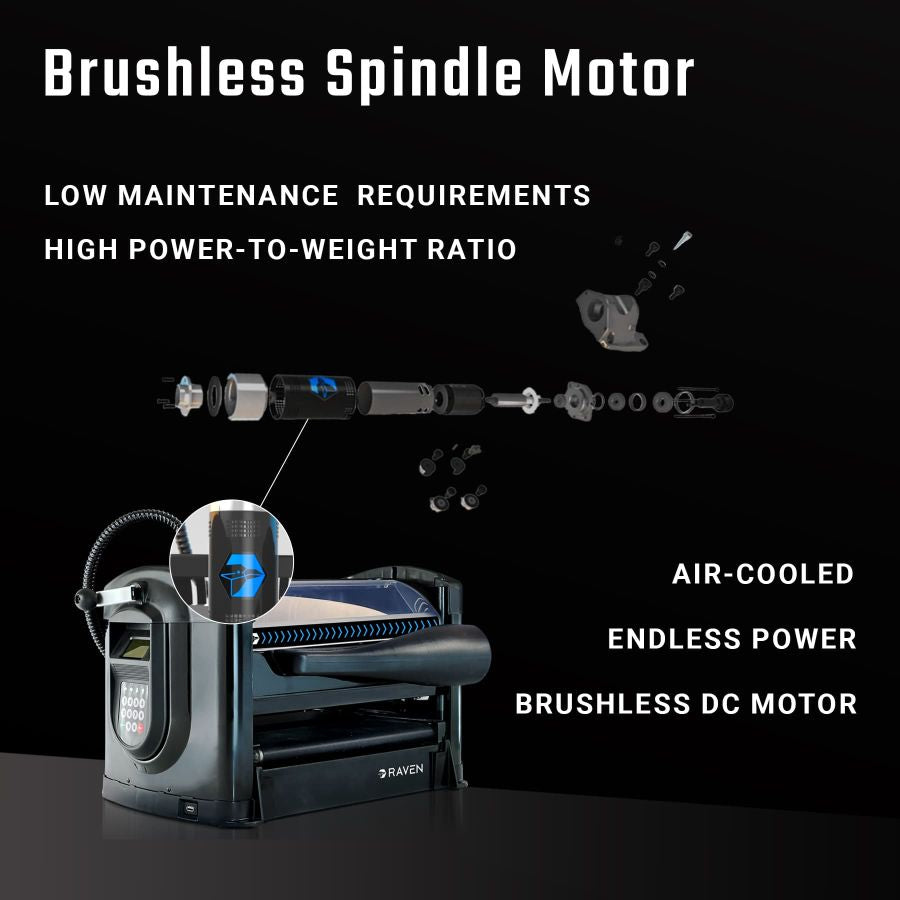

• 1.25 HP Continuous Brushless Torque: Driven by a premium, low-noise 675W continuous output brushless spindle motor providing a variable speed spectrum of 3,000 to 22,000 RPM. Free of wear-prone carbon brushes, its dust-free air-cooled design delivers reliable cutting torque with near-zero routine maintenance.

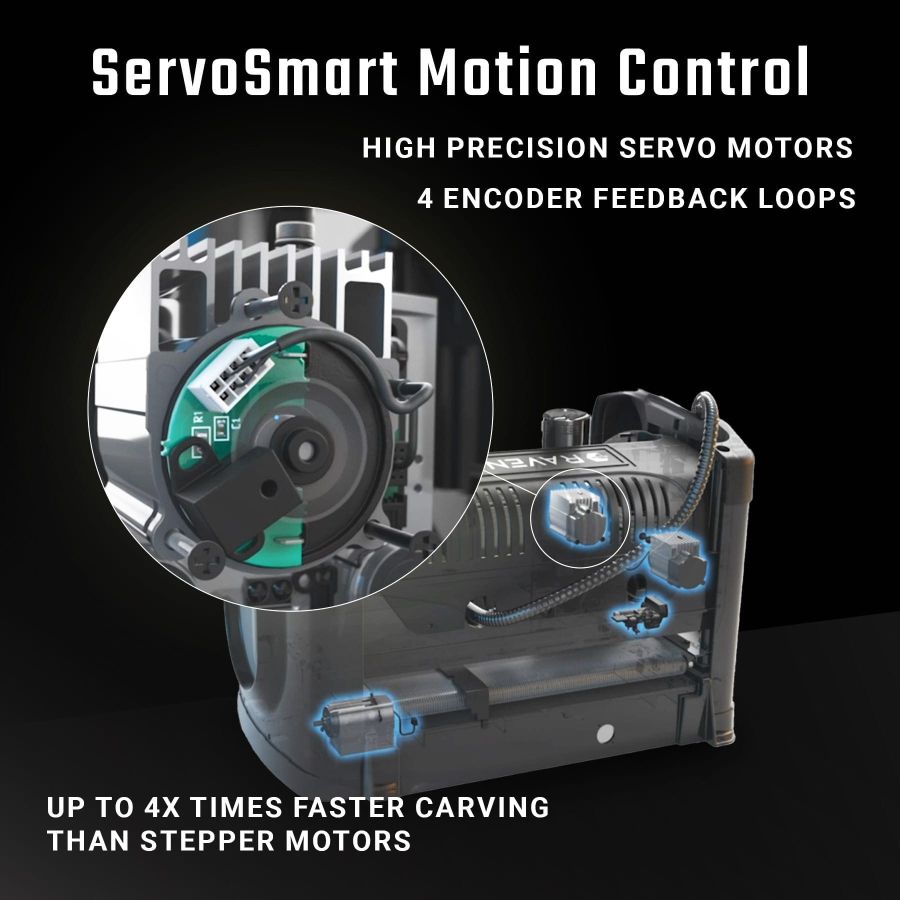

• ServoSmart 2 Advanced Motion Intelligence: Monitored by a smart ServoSmart™ 2 controller keeping real-time tabs on five independent closed-loop feedback circuits tied to high-speed Mabuchi servo motors. If a fast tool path catches a tough knot or sudden density shift in your material, the system automatically self-corrects for slipping or pauses safely to protect your workpiece rather than gouging or crashing.

• CarveTight Spindle Chuck System: Built from a hardened single-piece steel core running on high-speed phenolic cage bearings with a single clamping paw. This design keeps rotational runout near zero, protecting fragile detail engraving bits while speeding up manual tool changes.

Specialized Prop Accessories & Finishing Kits

• PRO Cutting & Carving Bit Set: Outfitted with an array of premium, application-specific cutting and carving bit profiles tailored to cleanly slice through high-density foams, plastics, and wood blanks without melting or tearing.

• Integrated 4-Axis Rotary Jig Setup: Ships complete with the specialized CarveWright Rotary Jig and its corresponding control software patch. This hardware expansion enables true 4-axis cylindrical indexing, allowing you to rotate stock 360 degrees to carve full cylindrical props like table legs, handles, scepters, and round weapons.

• Large 240-Grit Sanding Mop: Streamline your post-carve finishing work with an included large 240-grit flexible sanding mop. Perfect for mounting to a standard bench drill, its flexible fingers conform to complex 3D contours, smoothing out tool path lines in foam and wood without flattening fine details.

Technical Specifications Summary

Feature / Metric	Specification
Brand / Model Series	CarveWright — RAVEN CNC Series
Package Configuration	Prop Makers Bundle System
CNC Axis Performance	3-Axis Precision Routing & 3D Relief + 4-Axis Rotary Jig Indexing
Maximum Build Volume	15.5" (Width) x 5.5" (Thickness) x Up to 12 Feet (Length)
Motion Encoding Precision	0.0003-inch Max Encoder Resolution
Spindle Assembly Power	675W Continuous Output / Peak 1.25 HP Brushless
Spindle Speed Dynamics	3,000 to 22,000 RPM Variable Control
Carving / Jogging Speeds	Up to 6 Inches Per Second / 9.3 Inches Per Second
Universal Utility Power	Universal Auto-Sensing 90V–240V, 50/60 Hz Input
Chassis Core Materials	Cast Aluminum Head & Trucks with Painted Steel / ABS Shell
Net Machine Weight	70 lbs. Unloaded Base Machine Weight
Computer System Compatibility	Windows (10+) and Mac OS X (10.6+)

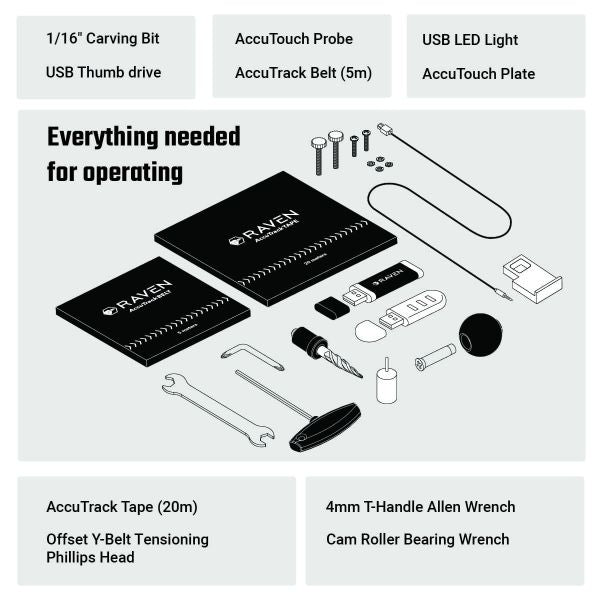

Package Inclusions (Prop Makers Bundle)

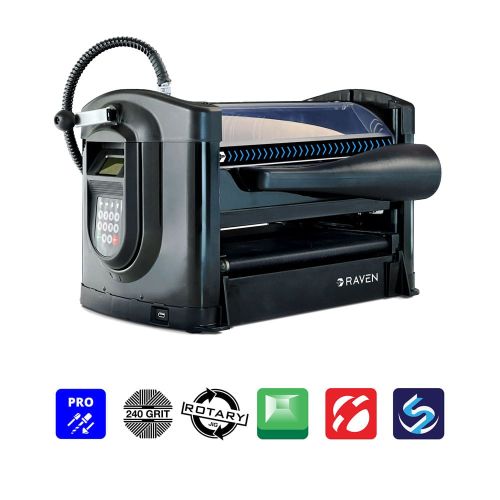

• RAVEN CNC Core Router Unit

• Designer 5 Software Core License & 50 3D Patterns

• Software Add-on Pack: Modeling Suite, Slicer Module, and Sculptor 2

• Hardware Expansion: Specialized Rotary Jig Assembly with Software

• Tooling Kit: PRO Cutting & Carving Bit Set

• Finishing Accessory: Large 240-Grit Flexible Sanding Mop

• Data Connectivity: Dedicated USB Flash Thumb Drive
