CarveWright RAVEN CNC Router Craft Makers Bundle (Three-Axis 3D Desktop Carving System, Brushless Spindle Motor, Designer 5 Software Suite, BASIC Bit Set & Sanding Mop)

CarveWright RAVEN CNC Router Craft Makers Bundle (Three-Axis 3D Desktop Carving System, Brushless Spindle Motor, Designer 5 Software Suite, BASIC Bit Set & Sanding Mop)

Unleash your creative potential and elevate your artisan projects with the CarveWright RAVEN CNC Router Craft Makers Bundle. Specially curated for hobbyist enthusiasts, independent makers, and professional craft artisans, this comprehensive system balances industrial-grade 3D carving power with a highly adaptable desktop format.

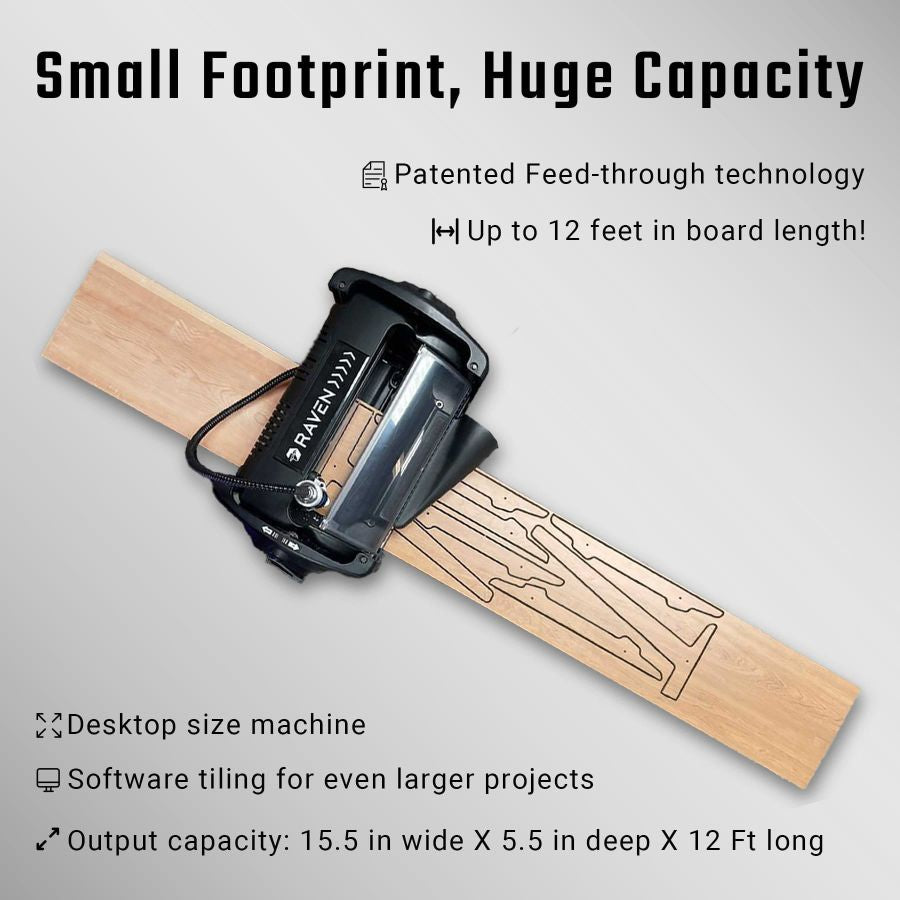

Unlike common gantry-style routers that restrict your work piece size to the dimensions of a physical cutting table, the RAVEN utilizes a patented feed-through design. Operating similarly to a workshop thickness planer, it passes raw wood stock or custom jigs directly through the unit, unlocking massive build capabilities while occupying minimal workbench real estate.

Equipped with premium editing software, a dedicated bit set, and precision finishing tools, the Craft Makers Bundle gives you everything you need to execute intricate relief designs and high-detail carvings right out of the box.

3-Axis Feed-Through Architecture & High-Resolution Precision

• Unlimited Length Design Window (Up to 12 Feet): Built to safely pass softwoods, hardwoods, and composite plastics through the machine body using heavy-duty rubberized PVC feed belts. This space-saving engineering handles a massive maximum build volume sizing up to 15.5 inches wide, 5.5 inches thick, and up to a staggering 12 feet long.

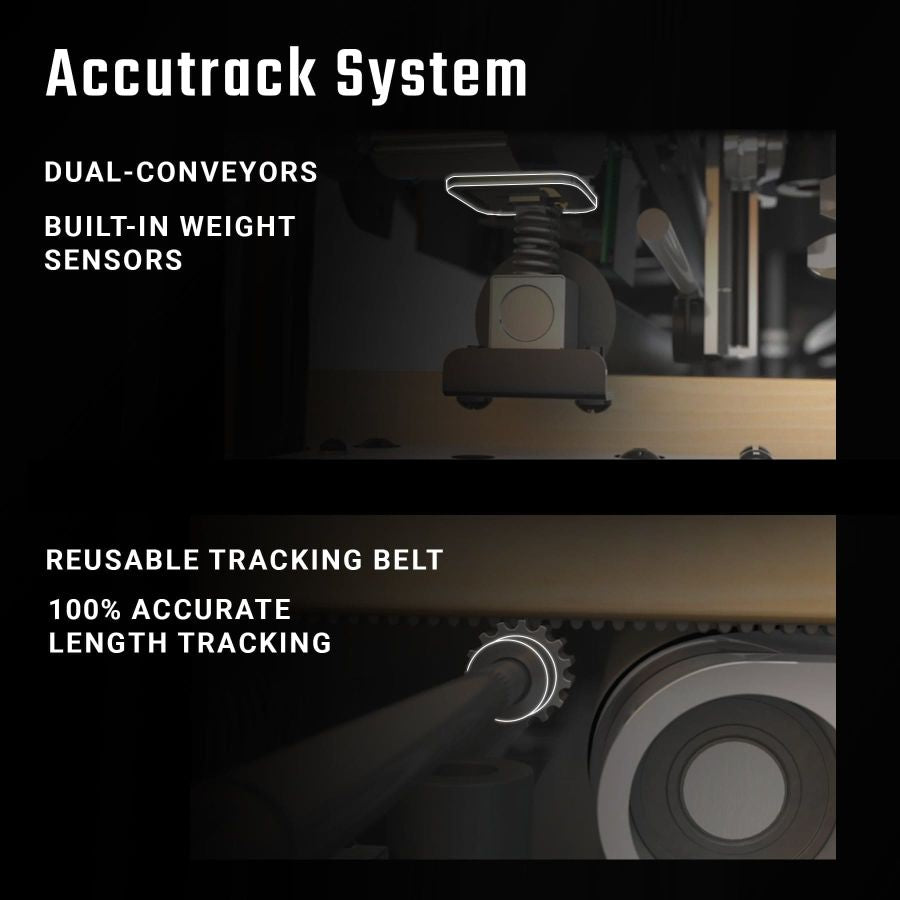

• Slip-Free AccuTrack Motion Encoding: Combines integrated weight sensors, dual-conveyors, and an advanced tracking matrix to completely eliminate board slippage. This delivers absolute positional tracking along feed sweeps down to a tight maximum encoder resolution of 0.0003 inches.

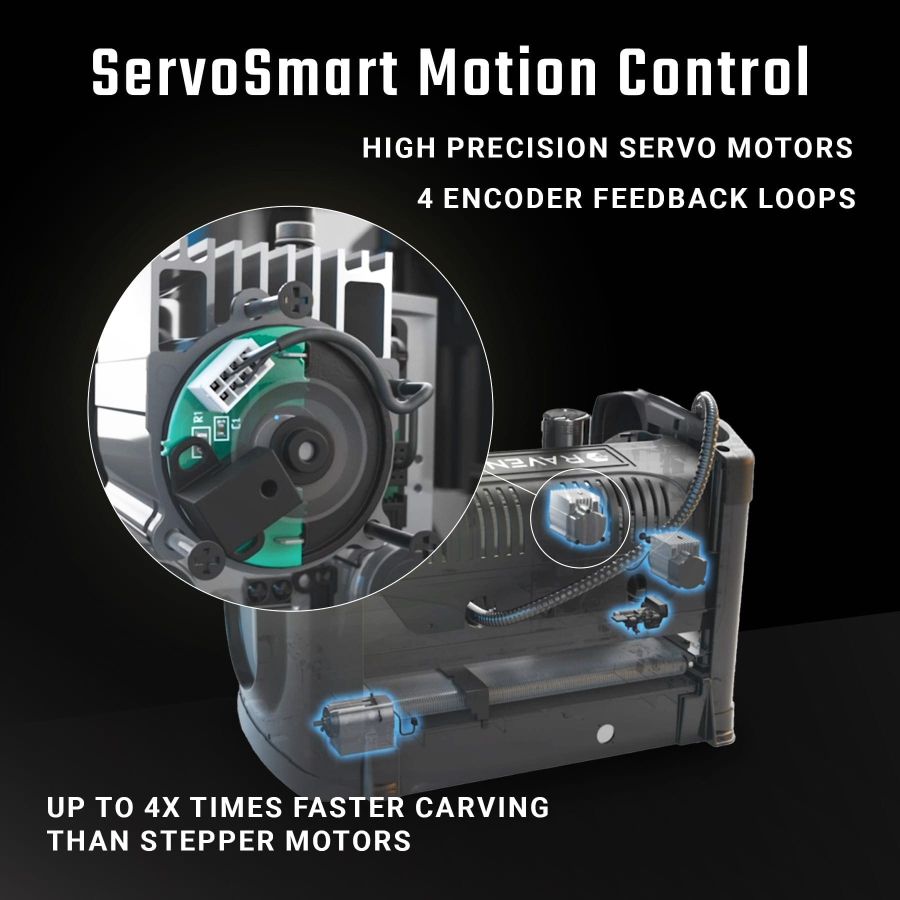

• ServoSmart 2 Advanced Motion Intelligence: Monitored by a smart ServoSmart™ 2 motion controller keeping tabs on five independent closed-loop feedback circuits. Driven by high-speed Mabuchi servo motors, the system pre-calculates axis backlash and automatically self-corrects for feed slips. Rather than crashing tools or gouging wood when hitting a hard knot, it pauses smoothly and alerts you via its LCD graphics panel.

High-Output Brushless Spindle & CarveTight Chuck

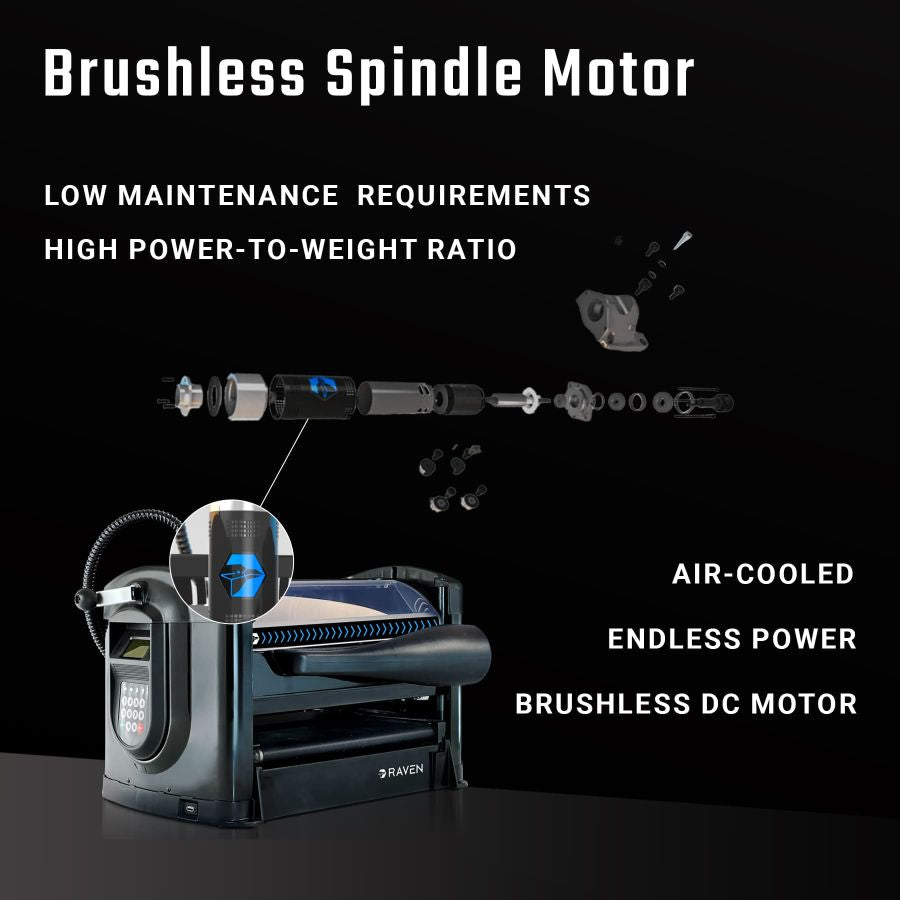

• 675W Continuous Output Spindle: Driven by a premium, dust-free air-cooled brushless spindle motor capable of generating a peak 1.25 horsepower. Spanning a highly versatile variable speed range from 3,000 to 22,000 RPM, it provides ample high-torque power for fast deep-relief 3D carves, texturing, or straight profiling.

• CarveTight Spindle Chuck System: Built from a hardened single-piece steel core running on high-speed phenolic cage bearings with a single clamping paw. This design keeps rotational runout near zero, protecting fragile detail bits from premature fracturing while speeding up manual tool changes.

Turnkey CAD/CAM Software & Specialized Craft Add-Ons

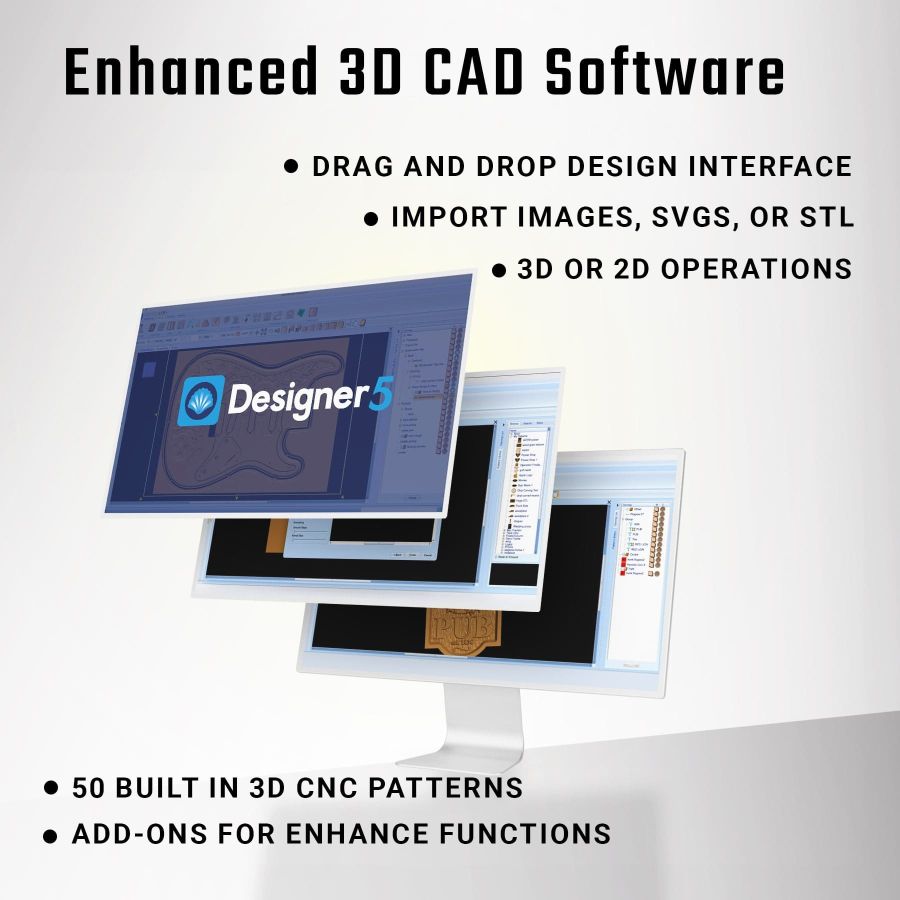

• Designer 5 Design Software Suite: Every Craft Makers Bundle includes a full license for CarveWright Designer 5 Software pre-loaded with 50 3D carving patterns. The user-friendly interface offers intuitive menus, toolbars, and layout setups, letting beginners jump into building custom wood reliefs, decorative panels, and holiday crafts immediately.

• Included BASIC Bit Set & Finishing Tools: This application-specific bundle includes the CarveWright BASIC Bit Set, packing essential cutting, carving, and profiling bits to adapt to varied project paths.

• Large 240 Grit Sanding Mop: Streamline your post-carve workflow with an included large 240-grit flexible sanding mop. Perfect for mounting to a drill press or handheld motor, it conforms to intricate curves and grooves to cleanly whisk away wood fuzz and burrs without flattening out fine, crisp detail lines.

Technical Specifications Summary

Feature / Metric	Specification
Brand / Model Series	CarveWright — RAVEN CNC Series
Package Classification	Craft Makers Bundle System
CNC Axis Performance	Precision 3-Axis Cutting, Routing, and 3D Relief Carving
Maximum Build Volume	15.5" (Width) x 5.5" (Thickness) x Up to 12 Feet (Length)
Motion Sensor Precision	0.0003-inch Max Encoder Resolution
Spindle Assembly Power	675W Continuous Output / Peak 1.25 HP Brushless
Spindle Speed Dynamics	3,000 to 22,000 RPM Variable Spectrum
Carving / Jogging Speeds	Up to 6 Inches Per Second / 9.3 Inches Per Second
Universal Utility Power	Universal Auto-Sensing 90V–240V, 50/60 Hz Input
Chassis Core Materials	Cast Aluminum Head & Trucks with Painted Steel / ABS Shell
Equipment Dimensions	Compact 19" L x 13" W x 15" H Desktop Profile
Net Machine Weight	70 lbs. Unloaded Base Machine
Computer System Compatibility	Windows (10+) and Mac OS X (10.6+)

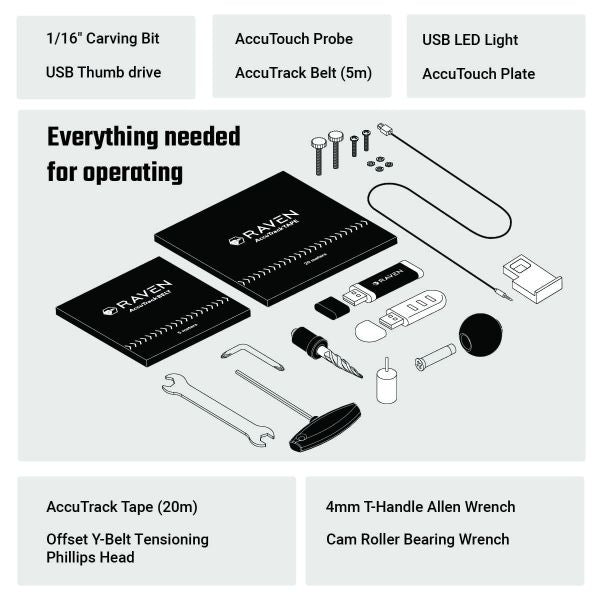

Package Inclusions (Craft Makers Bundle)

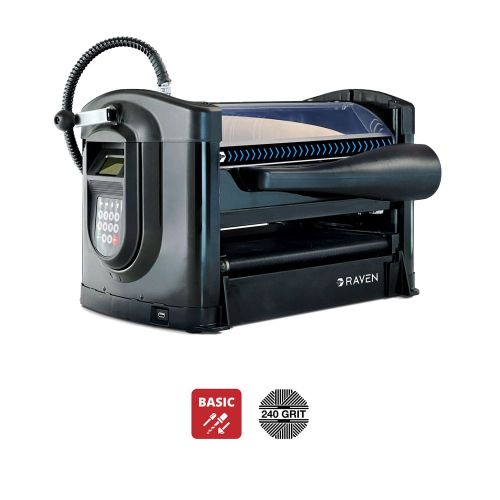

• RAVEN CNC Core Router Unit

• Designer 5 Core Software License & 50 3D Patterns

• CarveWright BASIC Bit Set

• Large 240 Grit Flexible Sanding Mop

• Raven Accessory Hardware Box & Heavy-Duty Dust Hood

• AccuTouch Probe & Zeroing Plates (For automated tool calibration)

• Data Transfer Connectivity: Dedicated USB Flash Thumb Drive
