The storeWALL 8' Heavy Duty Slatwall Case (4-Panels) + InstallStrips (SKU: IS-8-HD) is a premium, commercial-grade vertical organization system distributed by My Garage Supplies. Explicitly engineered to meet the absolute toughest demands of residential garages, commercial workshops, home gyms, and industrial storage bays, this heavy-duty configuration ranks as the world's strongest option for slatwall paneling.

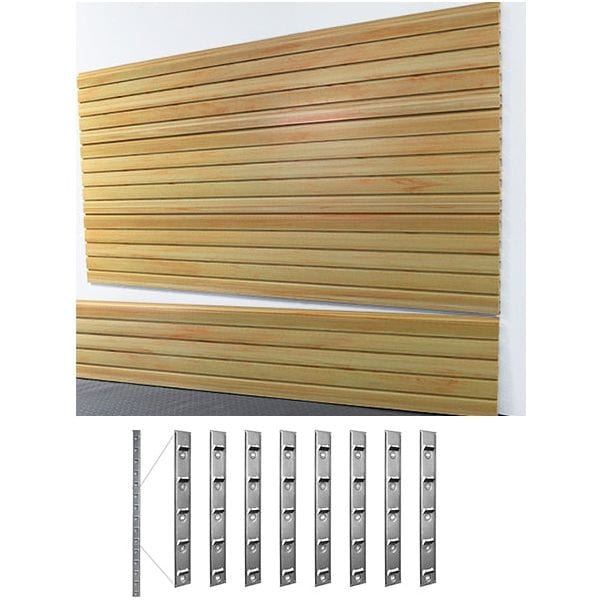

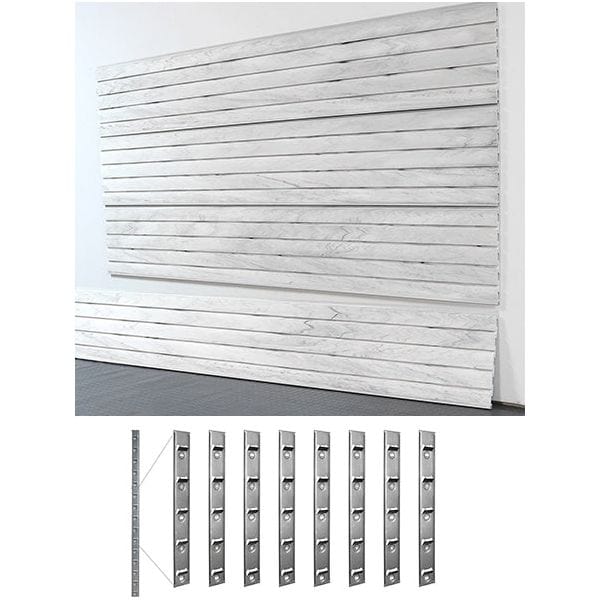

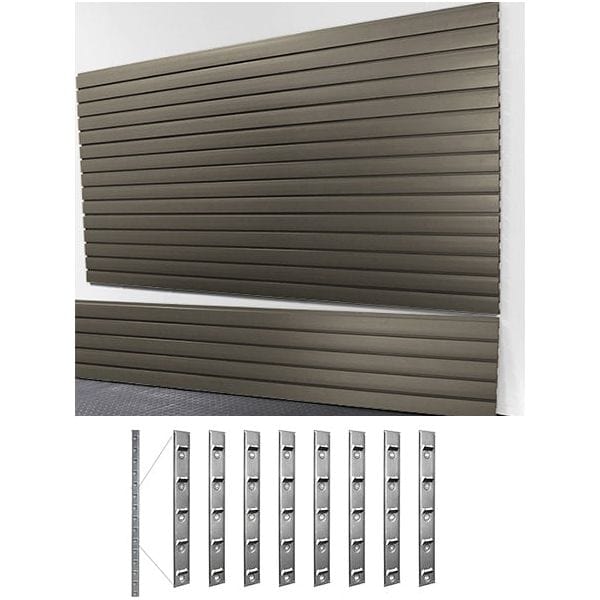

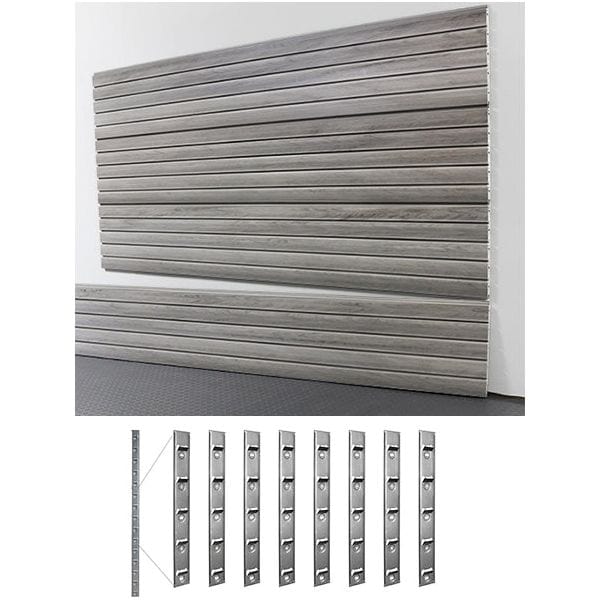

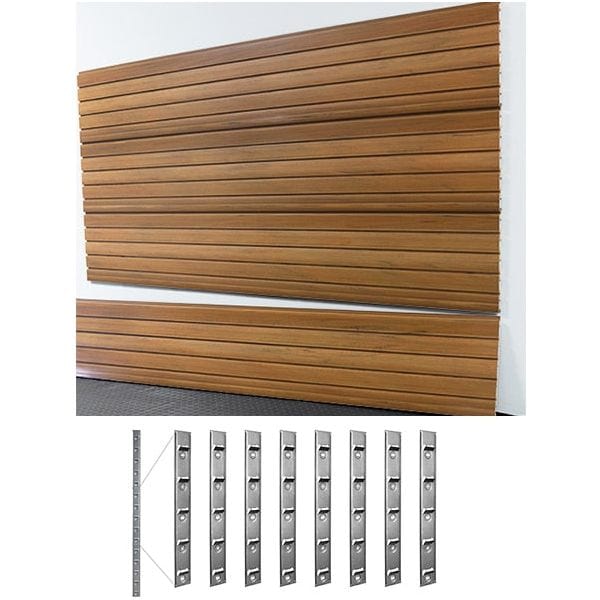

The core feature of this product configuration is the inclusion of storeWALL’s hidden InstallStrip sub-frame mounting system. Rather than drilling screws directly through the faces of the plastic panels—which ruins aesthetic lines and limits weight thresholds—the panel boards slide seamlessly onto these metal back-strips. This system provides a clean, fastener-free appearance and ensures the wall remains secure when supporting heavy equipment, ladders, or multi-bike setups.

Heavy-Duty PVC Panel Construction & Material Performance

  • Solid-Core Thermoplastic Matrix: Unlike typical compressed-wood fiber (MDF) or low-grade plastic pegboards, these panels are extruded from a premium, high-density thermoplastic PVC composite.

  • Complete Weatherproofing: The composite build is entirely waterproof, making it highly resistant to rot, seasonal expansion, insect infestations, and structural swelling. It performs reliably in non-climate-controlled spaces prone to intense humidity, freezing winters, or coastal salt air.

  • Industrial Scratch & Chemical Shield: Formulated with a solid-core color profile molded throughout the material rather than painted over the top. Superficial surface scratches do not reveal a contrasting gray or brown underlayer. The face naturally resists motor oils, grease, staining, and chemical solvents, requiring only a simple spray down with a garden hose or a microfiber wipe to clean.

Load-Bearing Slatwall Sizing Profiles

  • 40 Square Feet of Seamless Coverage: Each case bundle ships packed with 4 solid 8-foot-long slatwall panels. This configuration allows hardscape installers to maximize long wall surfaces with minimal visual seams and joints.

  • Expanded Vertical Sizing (15-Inch Profile): While entry-level storage panel configurations use a 12-inch panel height, these Heavy Duty panels measure 15 inches tall vertically and feature 5 integrated T-channels (slots) for accessory placement.

  • Thickened Structural Depth: Machined with an ultra-thick 0.70-inch panel wall cross-section, providing maximum rigidity and structural density.

Technical Load Capacities & Strength Ratings

When paired with the included Heavy Duty metal InstallStrips fastened directly into wood or steel framing studs, the load-bearing performance scales drastically:

  • 300 lbs Per Square Foot Load Rating: Safety-rated to support a massive continuous load of 300 pounds positioned directly against the face of the panel.

  • 165 lbs Extended Arm Load Rating: Even when supporting heavy loads extended out on storage hooks 4 inches away from the wall surface, the panel tracks comfortably carry up to 165 pounds without cracking, sagging, or flexing off the wall skeleton.

Technical Specifications & Installation Pack

  • Overall Cased Product Weight: 70 lbs (reflecting the dense structural gauge of the commercial PVC panel rails).

  • Master Shipping Box Proportions: 97" Long x 16" Wide x 4" Deep.

  • Core Accessory Interlocks: The T-channel groove engineering natively accepts storeWALL’s patented CamLok hooks, wire baskets, and heavy brackets, and it is universally compatible with standard 3-inch on-center slatwall pegs.

  • Included Mounting Infrastructure: Ships bundled with 8 Heavy Duty storeWALL InstallStrips (Note: Heavy Duty InstallStrips measure 45 inches long and can be broken along perforated lines into 15-inch segments to match your precise layout requirements).

  • Color Swatch Palette Selection: Available to customize at checkout across premium texturized architectural styles to coordinate with your home workshop layout: Weathered Grey, Brite White, Barnwood, Whitewood, Rustic Cedar, Global Pine, and Graphite Steel.
