Major Fitness Heritage Series B17 All-In-One Functional Trainer with Smith Machine (Dual Stack Multi-Functional Power Rack, Light-Commercial Squat Cage)

Major Fitness Heritage Series B17 All-In-One Functional Trainer with Smith Machine

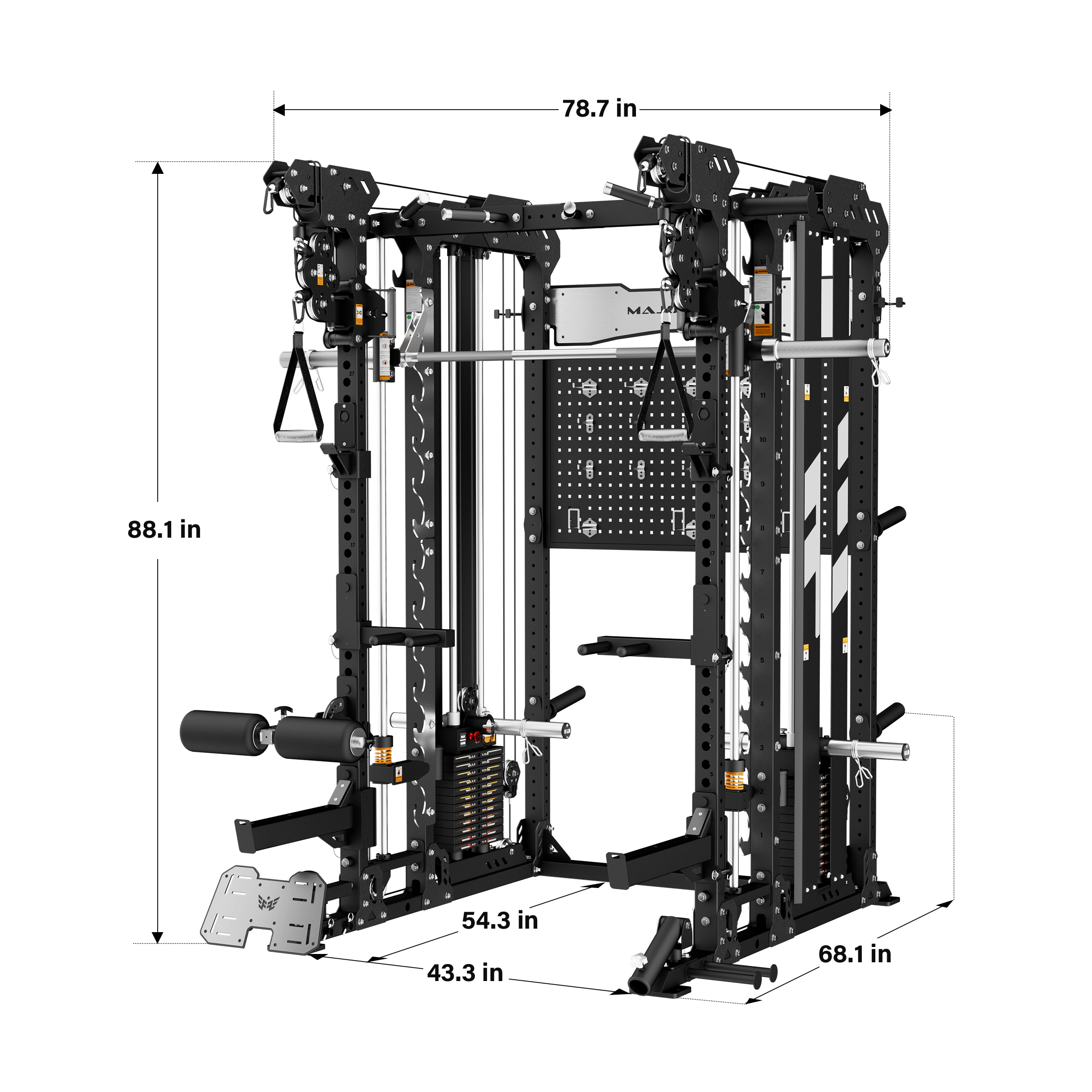

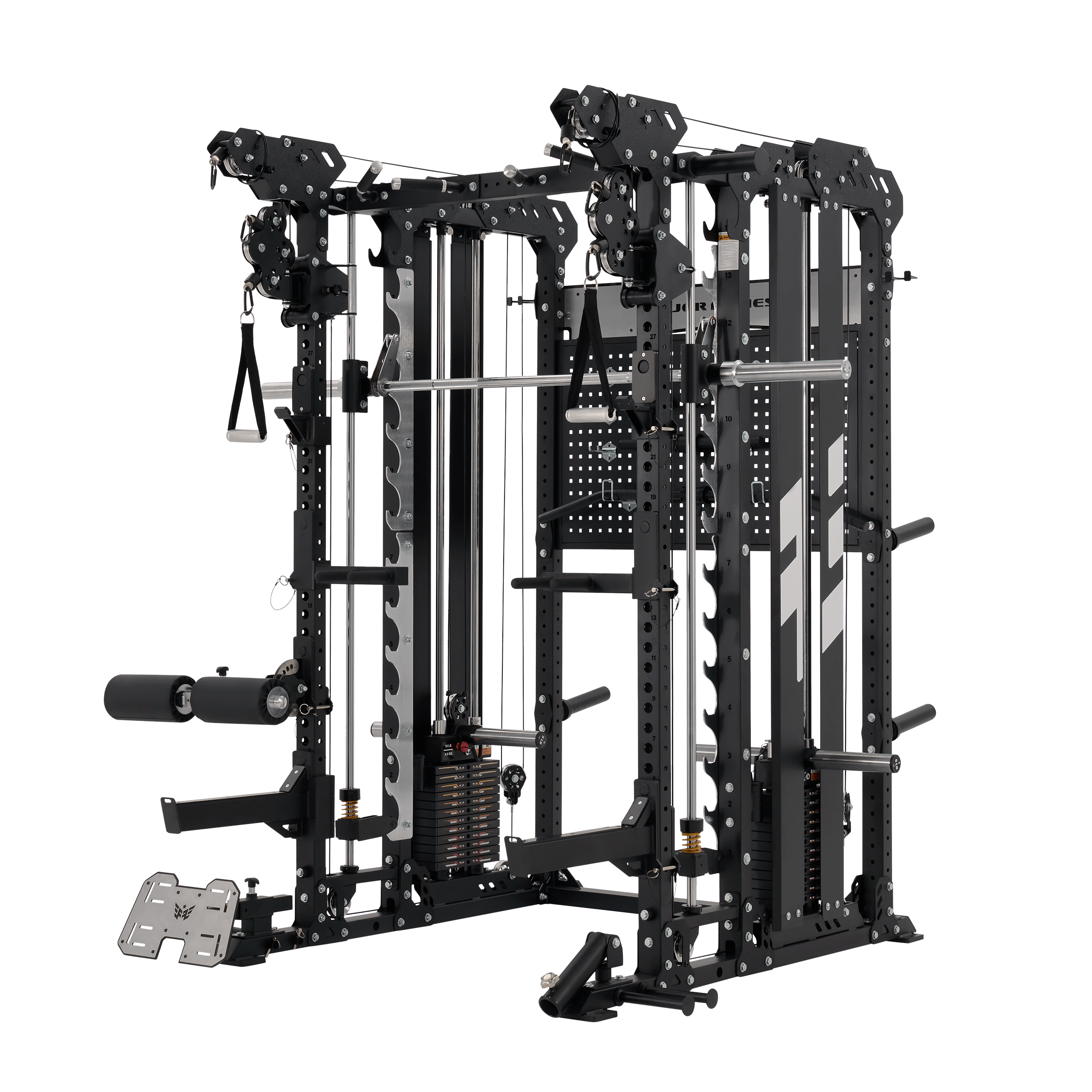

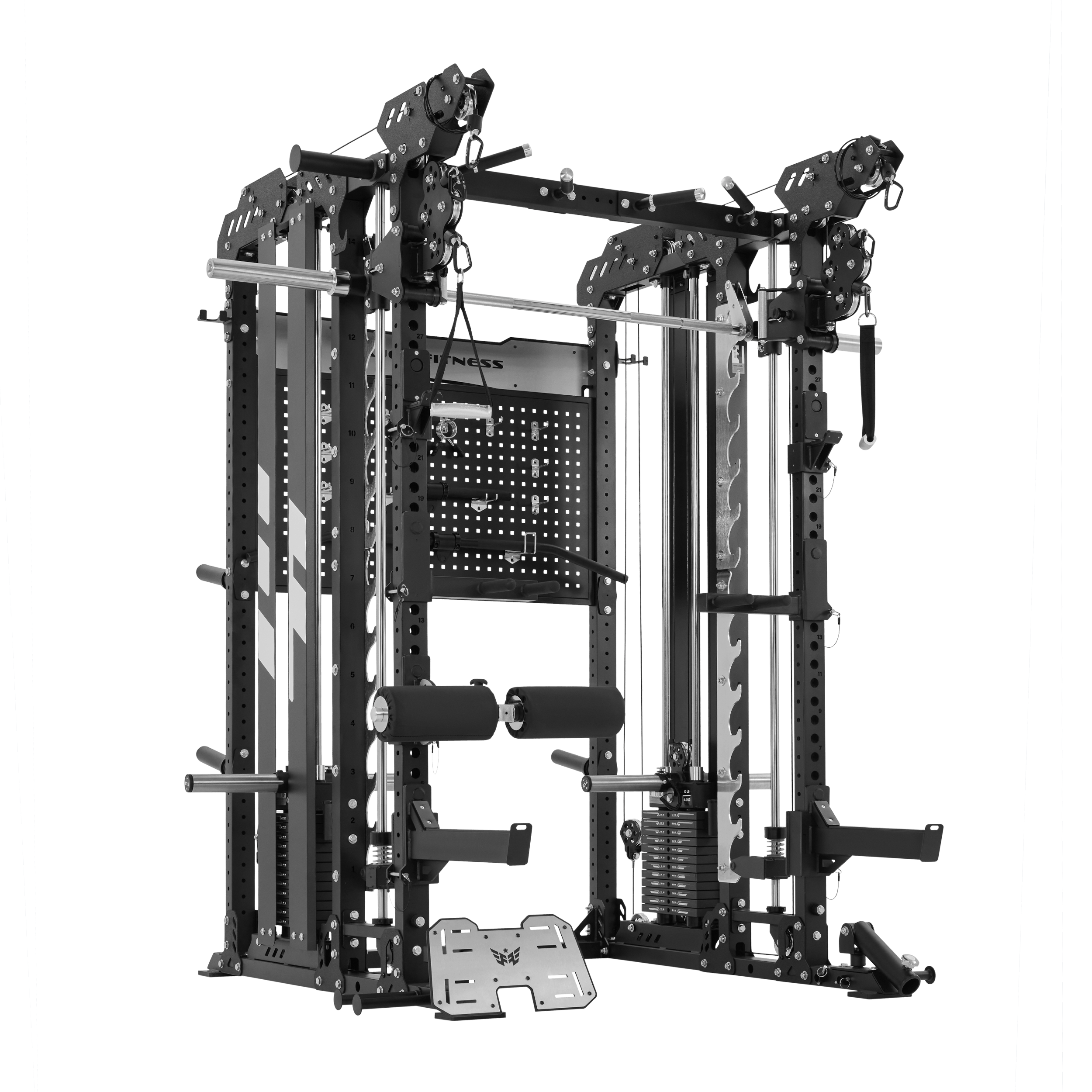

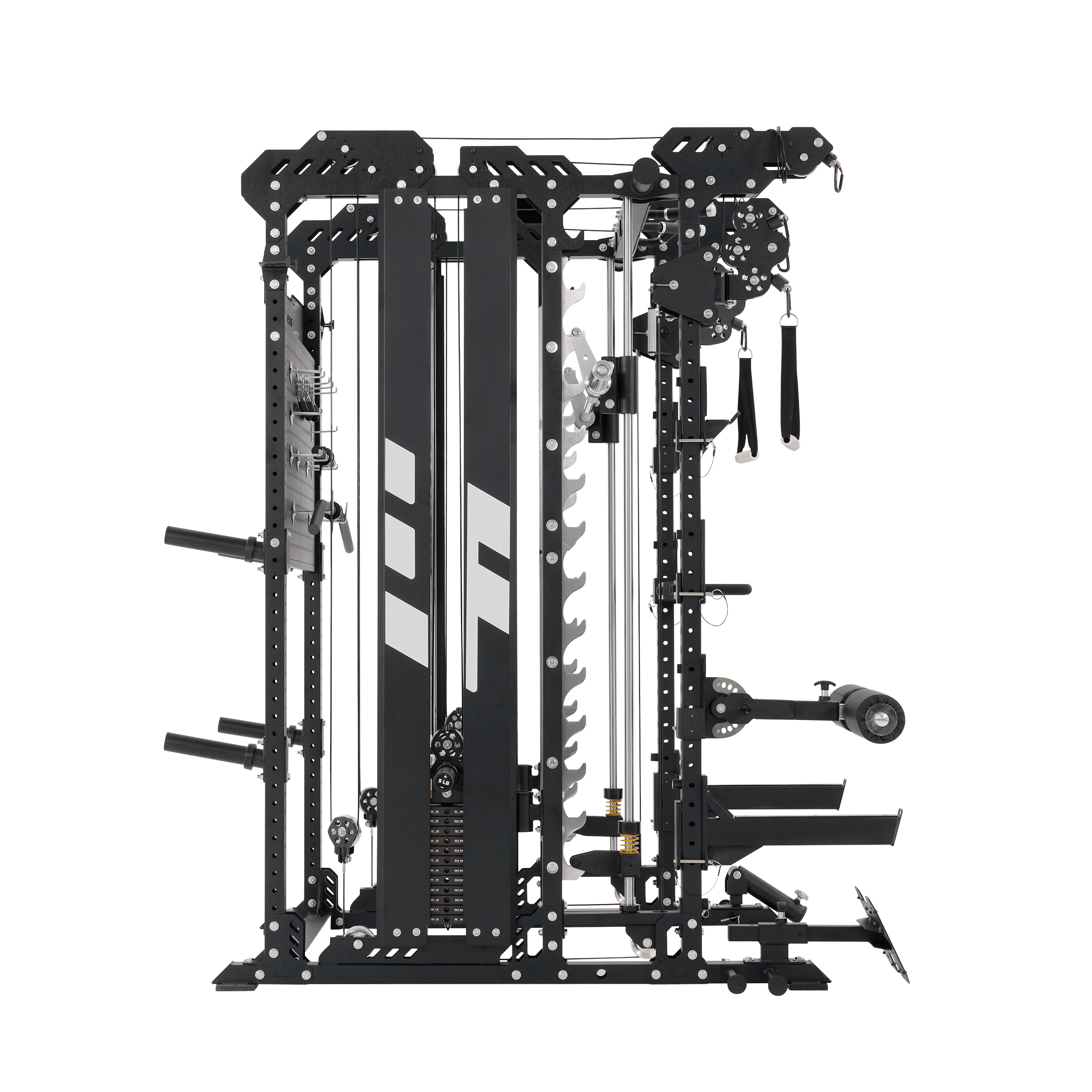

The Major Fitness Heritage Series B17 is a multi-function strength training system that combines a Smith machine, functional trainer, free-weight rack, cable stations, pull-up and dip stations, and a landmine attachment in one unit.

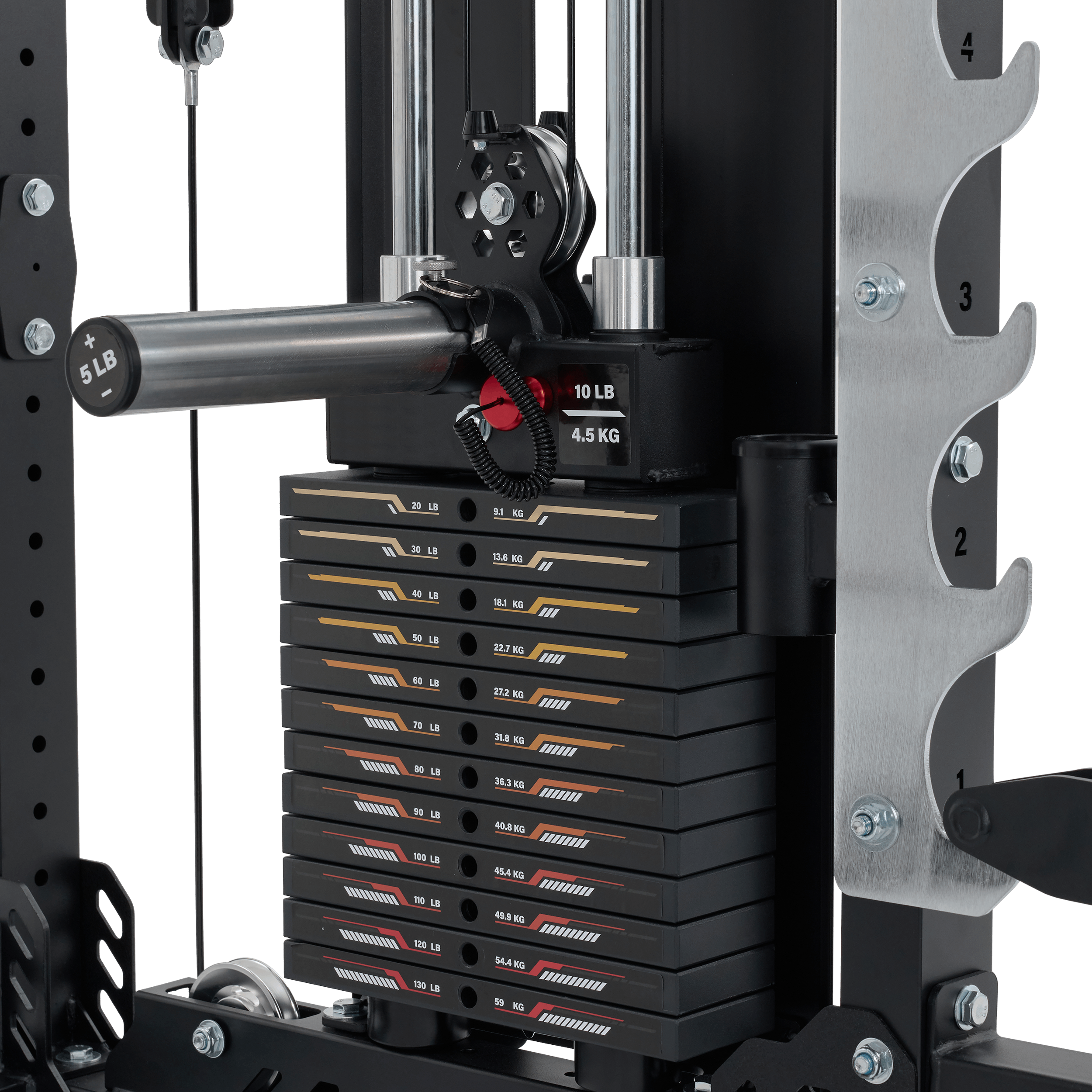

Dual Weight Stack Functional Trainer

The B17 includes two independent selectorized weight stacks.

Key features include:

• 2 × 130 lb. weight stacks

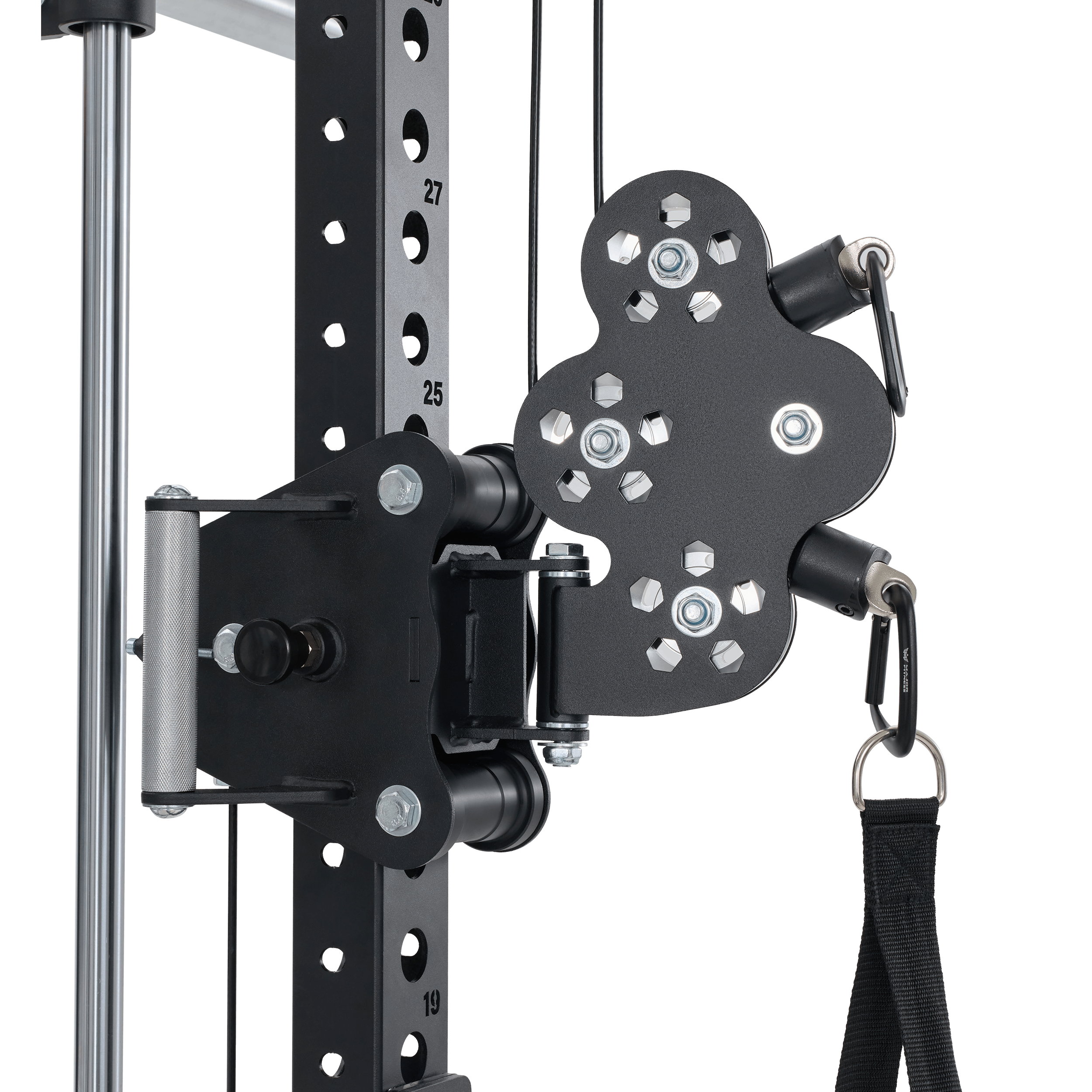

• Adjustable cable pulley positions

• Switchable 1:1 and 2:1 pulley ratios

• Independent left and right cable stations

Additional Olympic weight plates may be used on the designated upper weight horns when supported by the manufacturer's specifications.

1:1 and 2:1 Pulley Ratios

The cable system can be configured between 1:1 and 2:1 pulley ratios.

In a 1:1 configuration, the selected stack resistance is transferred through the cable system at the corresponding ratio.

In a 2:1 configuration, the cable system provides additional cable travel with reduced effective resistance relative to the selected stack weight.

Smith Machine

The B17 includes a guided Smith machine with linear bearings.

Smith machine features include:

• Guided bar path

• Linear bearing system

• 14 lockout positions

• Lower safety stop components

Free-Weight Rack

The front rack area can be used for compatible free-weight barbell exercises.

The frame includes:

• 2 in. × 3 in. front uprights

• 12-gauge front upright construction

• 14-gauge steel components in designated mid and rear frame sections

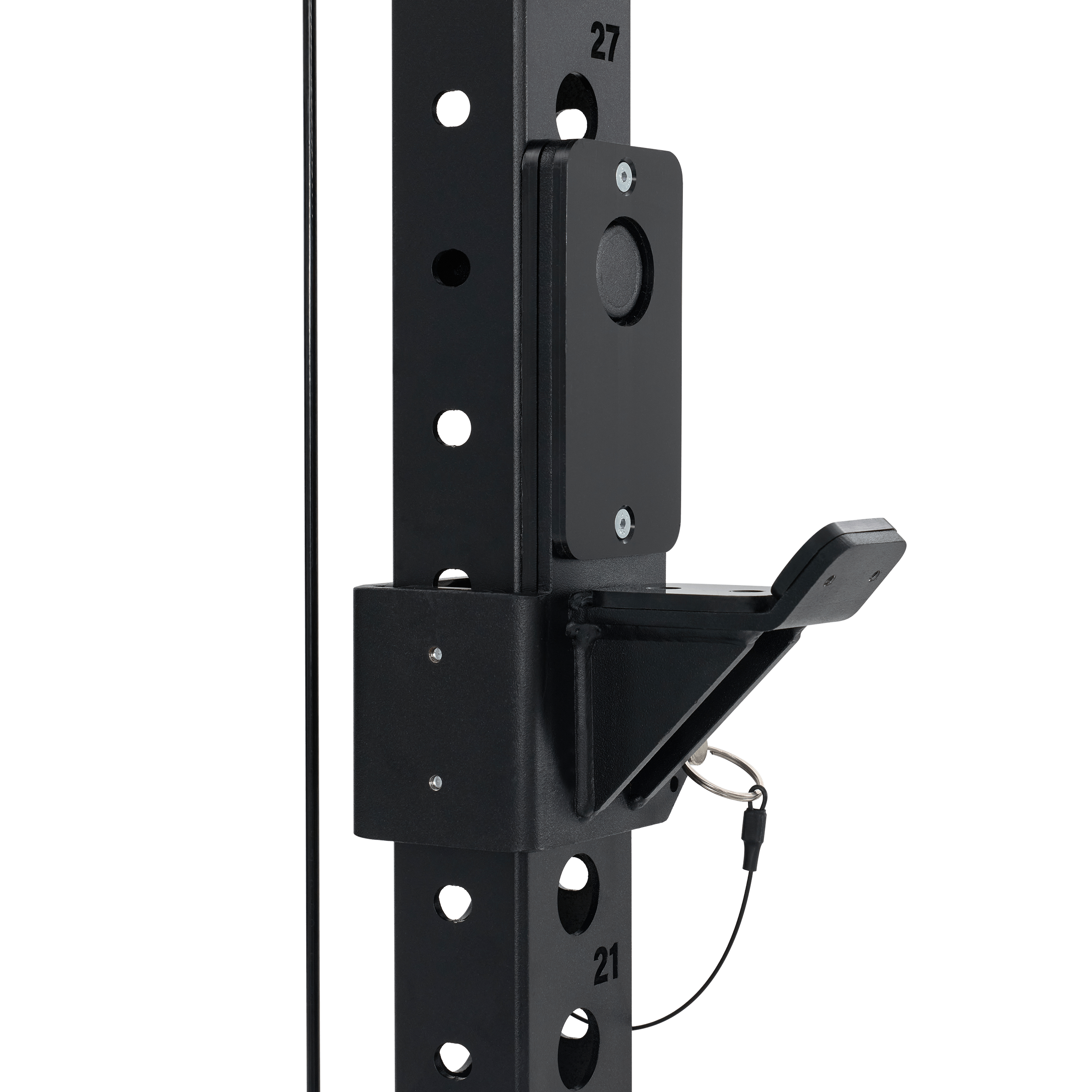

• J-hooks

• Safety spotter arms

Pull-Up, Dip, and Landmine Stations

The B17 also includes:

• Pull-up station

• Removable dip handles

• Landmine attachment

These stations support compatible bodyweight, barbell, and strength-training exercises.

Leg Holder and Low-Row Footplate

The machine includes:

• Padded vertical leg holder

• Adjustable low-row footplate

These components can be used to support positioning during compatible cable exercises.

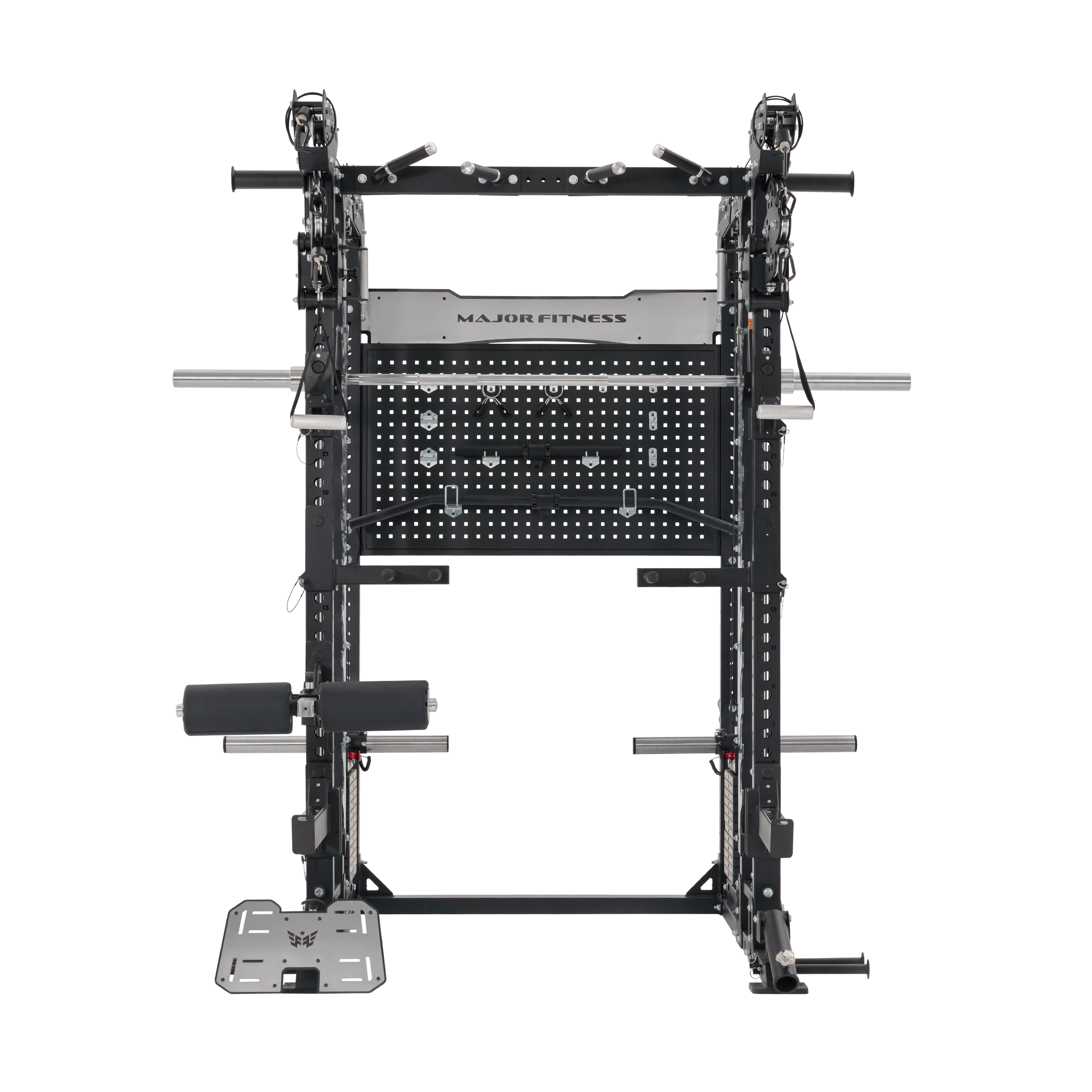

Integrated Storage

The B17 includes built-in storage features:

• Rear metal pegboard

• 4 weight plate storage horns

• 2 barbell storage sleeves

Included Cable Accessories

The included cable accessory set contains:

• Lat pulldown bar

• Straight row bar

• Tricep rope

• 2 stirrup handles

Additional Included Attachments

The machine also includes:

• 2 sandwich-style J-hooks

• 2 safety spotter arms

• 2 removable dip handles

• 1 landmine attachment

• 1 padded vertical leg holder

• 1 adjustable low-row footplate

Technical Specifications

Feature	Specification
Brand	Major Fitness
Series	Heritage Series
Model	B17
Machine Type	Functional trainer with Smith machine and rack
Weight Stacks	2 × 130 lb.
Pulley Ratios	1:1 and 2:1
Front Upright Size	2 in. × 3 in.
Front Upright Steel	12 gauge
Mid/Rear Steel	14 gauge
Smith Machine	Linear bearing guided system
Smith Lockout Positions	14
Storage	Rear pegboard, 4 plate horns, 2 barbell sleeves

Important Information

The final resistance available through the cable system depends on the selected pulley ratio, stack configuration, and any manufacturer-approved additional weight loading.

Weight plates and barbells are not included unless specifically listed as part of the selected product offer.

Please review the assembled dimensions, ceiling clearance, weight limits, plate compatibility, and included accessories before purchase.
